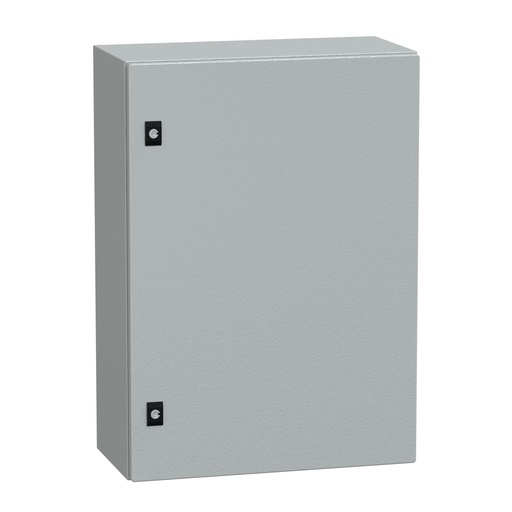

Schneider Spacial CRN (NSYCRN75250) is a wall-mounted universal steel enclosure built to safeguard critical equipment in demanding environments. Featuring a generous 250 mm depth, this model is specifically engineered to accommodate deep-frame contactors, cooling units, and large VFDs.

Constructed from a high-quality folded and welded single sheet of steel, it features a double-thickness front rail to prevent water or dust entry even when the door is opened. The enclosure is finished in a textured RAL 7035 light grey epoxy-polyester powder, ensuring superior resistance to chemicals and outdoor elements. Sold without a mounting plate, it offers engineers the ultimate blank canvas for custom industrial designs.

Key Technical Features:

Total Environmental Shield: Rated IP66 for complete protection against fine dust and high-pressure water jets.

Mechanical Durability: Rated IK10, the highest standard for protection against external mechanical impacts.

Deep Internal Space: The 250 mm depth facilitates better air circulation and fits components that standard 150mm or 200mm boxes cannot.

Professional Door Design: Plain reversible steel door with a 120° opening and a secure 3mm double-bar lock.

Integrated Gland Plate: Features a removable cable gland plate at the bottom for quick, professional wiring entry.

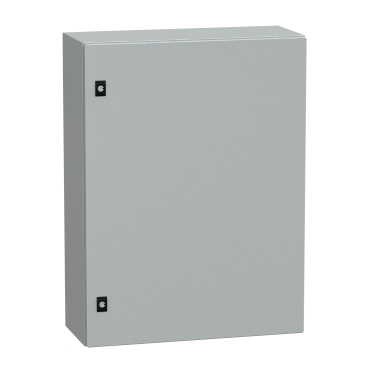

The Schneider Spacial CRN (NSYCRN86250) is a heavy-duty, wall-mounted steel enclosure built for maximum protection and space. Measuring 800x600x250 mm, it is a versatile solution for housing large-scale electrical components. The body is constructed from a single folded and welded sheet, featuring a double-sheet thickness gutter-shaped front rail to ensure a perfect seal.

Finished in a durable RAL 7035 light grey epoxy-polyester powder, it is highly resistant to industrial chemicals and environmental stress. This model is supplied without a mounting plate, offering ultimate flexibility for custom interior designs using modular chassis or deep-mount systems.

Key Technical Features:

Industrial Grade Protection: Rated IP66 for complete protection against dust and high-pressure water jets, and IK10 for maximum mechanical impact resistance.

Extra Deep Frame: The 250mm depth is ideal for large contactors, heavy-duty VFDs, and deep-mounted busbar systems.

Reinforced Door: The plain steel door features a 120° opening, is fully reversible, and is secured by a high-quality 3mm double-bar lock.

Integrated Gland Plate: Includes a large, removable cable gland plate at the bottom to simplify wiring and entry management.

Corrosion Resistant: Built to last in demanding environments with a high-resistance textured powder finish.

Schneider NSYMM106 (SKU: NSYMM106) is a heavy-duty internal mounting plate specifically engineered for the Spacial CRN, S3D, S3X, and Thalassa PLM enclosure ranges. This plate is manufactured from high-grade galvanized sheet steel, offering a corrosion-resistant and electrically conductive surface that is essential for grounding industrial assemblies.

Its tall, plain surface gives panel builders maximum freedom to mount high-density arrangements of contactors, PLC racks, and power supplies. Designed to withstand significant mechanical stress, the NSYMM106 ensures that components remain securely fastened, even in environments prone to industrial vibration.

Key Technical Features:

Precision Fit: Optimized for Schneider enclosures measuring 1000mm (H) x 600mm (W).

Corrosion Protection: The zinc-coated galvanized finish eliminates the need for painting and provides long-term resistance to rust.

High Load Capacity: Rated for a permanent permissible load of 135kg, making it suitable for heavy industrial gear and cable management systems.

Integrated Grounding: The galvanized surface ensures excellent electrical continuity for mounting components, simplifying the earthing process.

Easy Installation: Features pre-drilled corner mounting holes that align perfectly with the enclosure's back-studs for a fast, secure fit.

Schneider Spacial SM (NSYSM20840) is a premium floor-standing industrial cabinet engineered for maximum rigidity and protection. With dimensions of 2000x800x400 mm, this monobloc enclosure is built from a single piece of sheet steel with a welded rear panel and a front frame with welded corners, ensuring exceptional structural integrity.

This model is finished in a textured RAL 7035 light grey epoxy-polyester powder coating. It features a high-security 4-point locking system with an ergonomic handle, making it the standard choice for housing heavy-duty switchgear, PLC racks, and drive systems in factory environments. This version is supplied without a mounting plate, allowing for complete interior customization.

Key Technical Features:

Floor-Standing Design: Monobloc construction provides a stable, free-standing solution for heavy equipment.

IP55 & IK10 Protection: Rated IP55 for protection against dust and water jets, and IK10 for the highest level of mechanical impact resistance.

High-Security Locking: Equipped with a 4-point lock and a handle with a 5mm double-bar insert for professional access control.

Reversible Door: The plain steel door features reinforced frames, opens to 120°, and can be easily reversed for left or right opening.

Cabling Efficiency: Includes a standard cable gland plate and 4 mounting plate support brackets to simplify internal assembly.

Schneider SRVS240BP-9A is a robust external battery enclosure designed specifically for the Easy UPS 1 Ph Online extended runtime models. Housing a powerful string of lead-acid batteries, this pack provides a 240V nominal DC bus to sustain high-power loads. It is the essential companion for the SRVS6KIL and SRVS10KIL units, transforming a standard UPS into a long-duration power sanctuary.

Designed in a matching tower form factor, the SRVS240BP-9A allows for easy "daisy-chaining" if even longer runtimes are required. It features a heavy-duty connection cable and a built-in circuit breaker for added safety. For data centers, hospitals, and manufacturing plants in Egypt that cannot afford a single minute of downtime during prolonged grid instability, this battery pack is the definitive reliability upgrade.

Telephone Cable CU/PVC/PVC - 1 Pair x 0.6 mm Pair(s): 1 Pair x 0.6 mm - 100 Meter
El Sewedy Electric

UTP Telephone Cable PVC 30 Pairs x 0.6mm

AV4NPTV1/2"-VSSS-L745/12-V44A
Float Switch Type FLS-SA
Material: Stainless steel 316Ti (EN 1.4571)
Pressure: 1 bar
Temperature range: -20°C up to 80°C
Fluid density: 1000 kg/m3
Housing: Stainless steel
Ingress protection: IP66/68
Electrical connection: M20 x 1.5 mm with cable gland
Process connection: Mounting thread downwards 1/2"NPT
Switch function 1: Closing on rising level (SPST) 200 mm
Switch function 2: Closing on rising level (SPST) 500 mm
Switch function 3: Closing on rising level (SPST) 700 mm
Switch rating: max. AC 230V; 100VA; 1A / DC 230V; 50W; 0.5A
Float: Stainless steel 316Ti V44A; Float outer diameter: 44 mm
Number of floats: 2 pcs
Guide tube: OD 12 mm Insertion length (L): 745 mm
Float stop: Float collar
Weight: 1.4 kg

XCKM106 is a high-performance industrial limit switch from the trusted OsiSense XC range. Encased in a rugged Zamak metal body, it is built to withstand extreme mechanical stress and harsh industrial conditions. The cat's whisker actuator (spring rod) allows for multi-directional sensing, making it perfect for applications where the direction of the moving part is unpredictable or inconsistent.

Equipped with 1NC + 1NO snap-action contacts, the XCKM106 ensures reliable electrical switching with high repeat accuracy. Its modular design and three cable entries make it incredibly easy to install and integrate into existing control systems.

Telemecanique XCKN2102G11 is a high-quality, monolithic plastic limit switch engineered for essential sensing applications. As part of the XC Standard range, it provides a perfect balance between performance and affordability. The plastic roller plunger is designed for actuation by a lateral (side) approach, allowing for smooth operation even with cams or moving parts that aren't perfectly aligned.

Equipped with 1NC + 1NO snap-action contacts, the XCKN2102G11 ensures rapid and precise electrical switching. Its lightweight yet robust plastic construction is resistant to industrial pollutants, and the Pg11 cable entry makes it compatible with standard industrial glands used throughout Egypt

Telemecanique XCKN2106G11 is a lightweight yet durable industrial limit switch engineered for flexibility. As a key component of the XC Standard range, it features a flexible cat’s whisker (spring rod) actuator that can be triggered from any angle. This makes it ideal for sensing the presence of lightweight objects on conveyor belts or monitoring the position of swinging gates.

Equipped with 1NC + 1NO snap-action contacts, the XCKN2106G11 provides instantaneous switching logic regardless of how slowly the whisker is moved. Its glass-reinforced plastic body ensures excellent electrical insulation and resistance to common industrial chemicals, while the Pg11 cable entry ensures compatibility with standard Egyptian industrial wiring components.

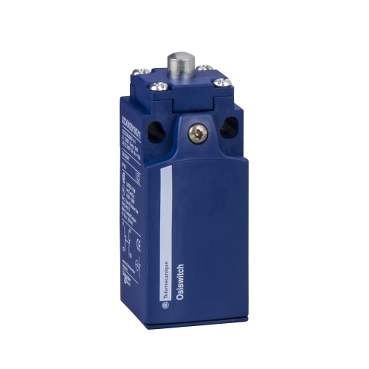

Telemecanique XCKN2110G11 is a high-quality industrial limit switch engineered for essential position sensing. As a key model in the XC Standard range, it combines a lightweight, glass-reinforced plastic body with a durable metal end plunger. This combination ensures excellent electrical insulation while providing a rugged contact point for mechanical actuation.

Equipped with 1NC + 1NO snap-action contacts, the XCKN2110G11 provides instantaneous electrical switching, ensuring accuracy even in slow-moving applications. Its Pg11 cable entry and compact footprint make it easy to integrate into specialized machinery, small conveyors, and automated door systems common in the Egyptian industrial market.

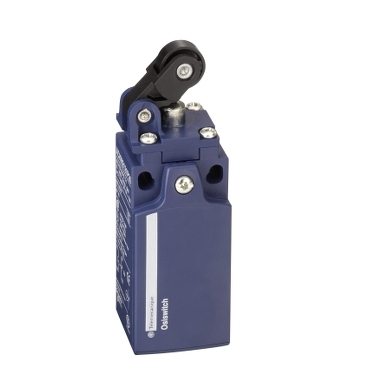

Telemecanique XCKN2121G11 is a high-quality industrial limit switch engineered for precision and reliability in essential automation tasks. As a staple of the XC Standard range, it features a lightweight but durable glass-reinforced plastic body and a thermoplastic roller plunger. The roller design is critical for reducing friction and mechanical wear when the actuating part (like a cam) passes across the head of the switch.

Equipped with 1NC + 1NO snap-action contacts, the XCKN2121G11 ensures an instantaneous and repeatable electrical response. Its compact design and Pg11 cable entry make it a versatile solution for packaging machinery, small-scale assembly lines, and general-purpose sensing across Egyptian industrial facilities.

Telemecanique XCKN2145G11 is a high-quality industrial limit switch engineered for essential automation and safety monitoring. As a staple in the XC Standard range, it features a glass-reinforced plastic body and a thermoplastic roller lever. This rotary-head design allows for smooth actuation by moving parts that approach the switch from the side, significantly reducing mechanical wear and impact stress.

Equipped with 1NC + 1NO snap-action contacts, the XCKN2145G11 provides instantaneous electrical switching. Its modular construction, lightweight profile, and Pg11 cable entry make it a preferred choice for machine builders in Egypt working on packaging lines, textile machinery, and automated material handling systems.

Inductive sensor XS2 M8, L42mm, brass, Sn2.5 mm, 12..24VDC, cable 2m

Inductive proximity sensors XS, inductive sensor XS6 M8, L51mm, stainless, Sn2.5 mm, 12...48 VDC, cable 2 m

Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 12...48 VDC, cable 10 m

Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 12...48 VDC, cable 2 m

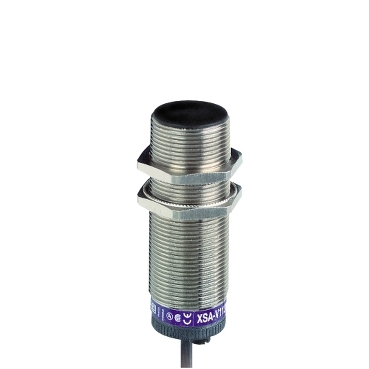

XSAV11801 | Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6…150c/mn, 24…240VAC/DC, cable 2 m
