1SAZ721201R1009
ABB TF42-0.23 is an economical and highly reliable protection device for the main motor circuit. It is engineered to protect small-scale motors in the event of overload or phase failure. With a specialized adjustable range of 0.17 to 0.23 Amperes, this relay provides Class 10 tripping characteristics, making it an essential safety component for high-precision industrial machinery.

Key Technical Features:

Bimetallic Thermal Protection: Proven Class 10 trip characteristic to prevent winding damage during overcurrent events.

Phase Loss Sensitivity: Built-in mechanism detects phase imbalance or loss, triggering a trip to protect the motor.

Ambient Temperature Compensation: Ensures accurate tripping performance in temperatures ranging from -25°C to +60°C.

Versatile Control: Features a selectable Manual/Automatic reset, a Test function for circuit verification, and a Stop button.

Direct Contactor Integration: Specifically designed for direct mounting to the underside of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1013
ABB TF42-0.31 is an economical and highly reliable thermal protection device for the main motor circuit. Engineered for precision, it features an adjustable setting range of 0.23 to 0.31 Amperes. This relay provides Class 10 tripping characteristics and is the ideal solution for protecting small industrial motors, dosing pumps, and specialized laboratory equipment against overloads and phase imbalances.

Key Technical Features:

Bimetallic Protection: Class 10 trip characteristic ensures dependable thermal protection for small-scale windings.

Phase Failure Sensitivity: Built-in protection to detect phase loss, preventing motor damage under unbalanced conditions.

Multifunctional Interface: Equipped with a selectable Manual/Auto reset button, a Test function for circuit verification, and a Stop button.

Temperature Compensated: Maintains accurate tripping performance in ambient temperatures from -25°C to +60°C.

Direct Contactor Mounting: Designed for seamless integration, plugging directly into the underside of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1014
ABB TF42-0.41 is an economical and robust motor protection solution. Specifically calibrated for a current range of 0.31 to 0.41 Amperes, it provides essential thermal protection (Class 10) for micro-scale industrial loads such as dosing pumps, small fans, and sensitive control devices. Part of the proven TF42 series, it is engineered to mount directly to AF contactors, creating a compact and professional motor starter.

Key Technical Features:

Reliable Bimetallic Protection: Features a Class 10 trip curve to prevent motor overheating and winding damage.

Phase Failure Sensitivity: Built-in protection mechanism that responds quickly to phase loss or imbalance.

Operational Versatility: Equipped with a multifunctional reset button (Manual/Auto), a Test function, and a Stop button for system diagnostics.

Ambient Temperature Compensation: Maintains accuracy in variable environments ranging from -25°C to +60°C.

Direct Contactor Mounting: Saves panel space and wiring time by plugging directly into AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1017
ABB TF42-0.55 is an economical and highly reliable thermal protection device for the main motor circuit. Engineered for accuracy in low-current applications, it features an adjustable setting range of 0.41 to 0.55 Amperes. This relay provides Class 10 tripping characteristics and is the ideal solution for protecting small industrial motors, dosing pumps, and specialized control circuits against overloads and phase imbalances.

Key Technical Features:

Reliable Bimetallic Protection: Class 10 trip characteristic ensures dependable thermal protection for small-scale motor windings.

Phase Failure Sensitivity: Built-in protection to detect phase loss, preventing motor damage under unbalanced electrical conditions.

Multifunctional Interface: Equipped with a selectable Manual/Auto reset button, a Test function for circuit verification, and a Stop button.

Temperature Compensated: Maintains accurate tripping performance in ambient temperatures from -25°C to +60°C.

Direct Contactor Mounting: Designed for seamless integration, plugging directly into the underside of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1021
ABB TF42-0.74 is a reliable and economical thermal protection device for the main motor circuit. It is specifically engineered to protect small motors in the event of an overload or phase failure. With an adjustable setting range of 0.55 to 0.74 Amperes, this relay utilizes Class 10 tripping characteristics to provide high-level safety for specialized industrial machinery and sensitive control loads.

Key Technical Features:

Proven Bimetallic Protection: Features a Class 10 trip characteristic to prevent winding damage during overcurrent conditions.

Phase Failure Sensitivity: Built-in protection mechanism that reacts quickly to phase loss, protecting the motor from unbalanced loads.

Temperature Compensation: Ensures consistent and accurate tripping in ambient operating temperatures from -25°C to +60°C.

Versatile Reset Options: Equipped with a selectable Manual/Auto reset button, a Test function for circuit verification, and a Stop button.

Seamless Integration: Designed for direct mounting to the load side of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1023
ABB TF42-1.0 is a highly durable and economical thermal protection device designed for the main motor circuit. Engineered for 1 Amp applications, it features an adjustable setting range of 0.74 to 1.00 Ampere. This relay provides Class 10 trip characteristics, ensuring your motor is protected against overloads, phase failures, and excessive heat buildup.

Key Technical Features:

Bimetallic Tripping: Reliable Class 10 thermal protection ensures the motor is disconnected before winding damage occurs.

Phase Failure Detection: Built-in sensitivity to phase loss protects the motor from running on two phases, a common cause of burnouts.

Temperature Compensation: Maintains accurate performance in ambient temperatures from -25°C to +60°C, ideal for fluctuating industrial climates.

Dual Reset Function: Features a reset button that is easily switchable between Manual and Automatic modes, plus an integrated Test/Stop function.

Compact Design: Plugs directly into the underside of AF09, AF12, AF16, AF26, AF30, and AF38 contactors to save DIN rail space.

1SAZ721201R1043
ABB TF42-10 is an economical and reliable solution for motor protection against overloads and phase failures. With an adjustable range of 7.6 to 10.0 Amperes, it offers specialized Class 10 tripping to ensure your motors are disconnected before overheating leads to failure. Designed for industrial durability, it integrates flawlessly with the AF series contactors to create a compact, space-saving motor starter.

Key Technical Features:

Bimetallic Protection: Provides a precise Class 10 trip curve, ideal for standard industrial motor starting and running.

Phase Failure Protection: Automatically monitors phase balance and trips the circuit in the event of a phase loss to prevent motor winding burnout.

Built-in Temperature Compensation: Ensures accurate tripping across a wide temperature range (-25°C to +60°C), preventing nuisance trips in hot panels.

Flexible Control Options: Features a selectable Manual or Automatic reset, a Test function for safety checks, and a Stop button.

Direct Contactor Mounting: Saves installation time and wiring costs by plugging directly into AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1045

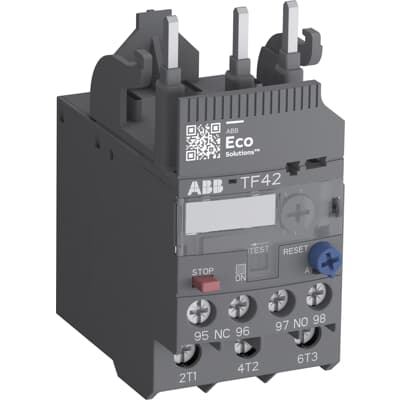

ABB TF42-13 provides dependable thermal protection for your main motor circuits. Specifically engineered to guard against overloads and phase failures, it features an adjustable current range of 10.0 to 13.0 Amperes. With its Class 10 trip characteristic, this relay ensures that the circuit is interrupted before heat buildup can damage motor insulation, offering peace of mind for mission-critical industrial applications.

Key Technical Features:

Bimetallic Overload Protection: Precise Class 10 tripping ensures the safety of motors during sustained overcurrent.

Phase Failure Sensitivity: Advanced internal mechanism detects phase loss or imbalance, preventing motor overheating and burnout.

Temperature Compensation: Reliable performance across a wide ambient temperature range (-25°C to +60°C), ideal for industrial environments.

Integrated Control Functions: Features a selectable Manual/Automatic reset button, a Stop button, and a Test function for circuit verification.

Direct Mounting System: Designed for quick, tool-free direct mounting to AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1025
ABB TF42-1.3 is an economical and highly durable protection device for the main motor circuit. It is specifically engineered to protect motors in the event of an overload or phase failure. With an adjustable range of 1.0 to 1.3 Amperes, this relay provides Class 10 tripping characteristics, ensuring a dependable disconnection before motor windings are damaged.

Key Technical Features:

Reliable Thermal Protection: Utilizes bimetallic elements with Class 10 trip characteristics for consistent motor safety.

Phase Failure Sensitivity: Built-in protection mechanism that reacts quickly to phase loss, preventing motor burnouts.

Temperature Compensation: Maintains accurate tripping performance in ambient temperatures ranging from -25°C to +60°C.

Integrated Controls: Features a Reset button (Manual/Auto), a Test function for circuit verification, and a Stop button.

Plug-and-Play Integration: Designed for direct mounting to the load side of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1047
ABB TF42-16 is an essential safety component for protecting your motor starters from thermal damage. With an adjustable current setting of 13.0 to 16.0 Amperes, it provides high-precision Class 10 protection. This relay is engineered to handle the demands of industrial environments, offering sensitive protection against both sustained overloads and phase failures, ensuring your machinery operates safely and efficiently.

Key Technical Features:

Reliable Thermal Trip: Class 10 tripping characteristics provide a proven balance between motor starting capability and overheat protection.

Phase Loss Protection: Features a sensitive mechanism that detects phase imbalance or total loss, preventing motor burnout.

Ambient Temperature Compensation: Accurate operation in temperatures from -25°C to +60°C, reducing nuisance trips in high-heat industrial panels.

User Interface: Equipped with a selectable Manual/Auto reset switch, a Stop button, and a Test function for easy troubleshooting.

Integrated Installation: Optimized for direct mounting to AF09, AF12, AF16, AF26, AF30, and AF38 contactors, eliminating the need for extra mounting hardware.

1SAZ721201R1028
ABB TF42-1.7 thermal overload relay is a robust, bimetallic protection device designed for the main motor circuit. With an adjustable current setting range of 1.3 to 1.7 Amperes, this relay ensures your industrial motors are safely disconnected during overload conditions or phase imbalances. It is engineered for precision and longevity, featuring Class 10 tripping characteristics that meet global industrial standards.


Key Technical Features:

Reliable Bimetallic Protection: Features a Class 10 trip curve to prevent motor overheating and permanent winding damage.

Phase Failure Sensitivity: Built-in mechanism that reacts quickly to phase loss, providing comprehensive motor safety.

Ambient Temperature Compensation: Maintains consistent accuracy in environments ranging from -25°C to +60°C.

Integrated Control Interface: Includes a Reset button (Manual/Auto selectable), a Test function for circuit verification, and a Stop button.

Easy Contactor Mounting: Designed for direct, tool-free connection to the underside of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1049
ABB TF42-20 provides superior motor protection for high-demand electrical circuits. Designed to safeguard against thermal overloads and phase failures, it features an adjustable current range of 16.0 to 20.0 Amperes. With its Class 10 trip characteristics, it offers the perfect balance between allowing for heavy motor start-ups and providing rapid disconnection during fault conditions to prevent stator winding damage.

Key Technical Features:

Bimetallic Thermal Protection: Reliable Class 10 trip curve ensures precision safety for standard three-phase motors.

Phase Failure Sensitivity: Built-in protection that reacts immediately to phase loss, preventing motor failure in unbalanced power conditions.

Ambient Temperature Compensation: Calibrated to maintain accurate tripping performance in ambient temperatures from -25°C to +60°C.

Full Operator Interface: Features a Manual/Auto reset selector, a Stop button, and a Test function for routine safety maintenance.

Direct Contactor Mounting: Optimized for a seamless, cable-free connection to the load side of AF26, AF30, and AF38 contactors.

1SAZ721201R1031
ABB TF42-2.3 is an essential safety device for protecting your motors from overloads and phase failures. With an adjustable setting range of 1.7 to 2.3 Amperes, it provides a robust thermal protection solution for small industrial motors. This relay is engineered to withstand harsh environments, offering consistent Class 10 tripping characteristics to prevent motor burnout and downtime.

Key Technical Features:

Bimetallic Protection: Provides precise thermal monitoring to safeguard motor windings from excessive heat.

Phase Loss Sensitivity: Advanced internal mechanism quickly detects phase imbalances, protecting the motor in unstable power conditions.

Ambient Temperature Compensation: Accurate performance from -25°C to +60°C ensures reliability inside crowded control panels.

Selectable Reset Modes: Easily switch between Manual and Automatic reset to suit your specific application requirements.

Compact Mounting: Plugs directly into AF09, AF12, AF16, AF26, AF30, and AF38 contactors, requiring no additional wiring between the two.

1SAZ721201R1033
ABB TF42-3.1 is a robust and economical solution for protecting your motors from overloads and phase failures. Designed for current ratings between 2.3 and 3.1 Amperes, this relay features Class 10 tripping characteristics, ensuring a rapid response to overcurrent conditions. It is a critical component for small pump motors, fans, and automation systems that require dependable thermal protection.

Key Technical Features:

Bimetallic Overload Protection: Features a precise Class 10 trip curve to prevent motor overheating and winding damage.

Phase Failure Sensitivity: Built-in mechanism detects phase imbalance or loss, triggering a trip to protect the motor in unstable power conditions.

Ambient Temperature Compensation: Accurate performance from -25°C to +60°C ensures reliability inside crowded control panels.

Integrated Controls: Features a selectable Manual/Automatic reset, a Test function for circuit verification, and a Stop button.

Direct Contactor Mounting: Designed for seamless integration, plugging directly into the underside of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

1SAZ721201R1035
ABB TF42-4.2 provides professional-grade protection for the main motor circuit. Engineered to defend your equipment against overloads and phase failures, it features an adjustable current range of 3.1 to 4.2 Amperes. With Class 10 tripping characteristics, this relay ensures that power is disconnected before motor windings sustain permanent heat damage, making it a critical safety component for your electrical panels.

Key Technical Features:

Bimetallic Thermal Protection: Accurate Class 10 trip curve ensures the motor is protected during prolonged overcurrent.

Phase Failure Sensitivity: Built-in mechanism detects phase loss quickly, preventing motor burnout in unbalanced power conditions.

Ambient Temperature Compensation: Maintains consistent accuracy in environments ranging from -25°C to +60°C.

Flexible Reset Options: Features a selectable Manual/Automatic reset button, plus dedicated Test and Stop functions.

Seamless Integration: Plugs directly into the load side of AF09, AF12, AF16, AF26, AF30, and AF38 contactors without extra wiring.

1SAZ721201R1038
ABB TF42-5.7 offers reliable and economical protection for your motor starters against overloads and phase failures. With an adjustable setting range of 4.2 to 5.7 Amperes, it provides a Class 10 trip characteristic, ensuring that your equipment is disconnected safely before heat damage occurs. Its compact design allows it to integrate perfectly into modern control cabinets while maintaining high sensitivity to phase imbalances.

Key Technical Features:

Bimetallic Overload Protection: Features a Class 10 trip curve for dependable protection against prolonged high-current conditions.

Phase Loss Sensitivity: Specifically designed to detect phase failure, shielding the motor from burnout during unbalanced operation.

Climate Compensation: Maintains accurate tripping performance in ambient temperatures from -25°C to +60°C.

User-Friendly Control: Includes a selectable Manual/Automatic reset, a functional Test button, and a Stop button for emergency disconnection.

Direct Contactor Mounting: Engineered to plug directly into AF09, AF12, AF16, AF26, AF30, and AF38 contactors, saving labor and panel space.

1SAZ721201R1040
Protect your industrial motors with the ABB TF42-7.6, a reliable bimetallic overload relay engineered for the 5.7–7.6 Ampere range. Featuring Class 10 tripping technology, it offers rapid and accurate disconnection during overcurrent events, preventing costly motor burnouts. This relay is specifically designed for the AF series contactors, ensuring a compact and vibration-proof assembly for your motor starters.

Key Technical Features:

Advanced Bimetallic Protection: Class 10 trip curve provides optimized protection for standard motor applications.

Phase Failure Detection: Automatically senses the loss of a phase, triggering a trip to protect the motor from overheating due to unbalanced loads.

Thermal Compensation: Consistent performance in various environments, calibrated for ambient temperatures from -25°C to +60°C.

Operational Control: Includes a manual/automatic reset selector, a test function to simulate tripping, and a stop button for manual intervention.

Plug-and-Play Design: Mounts directly to the load side of AF09, AF12, AF16, AF26, AF30, and AF38 contactors.

AUXILIARY CONTACTOR

AUXILIARY CONTACTOR

HDC30911M7 | Contactor Himel 9A 4KW 220VAC, 1NO + 1NC HDC30911M7 | كونتاكتور هيميل 9 امبير 4 كيلو كويل 220 فولت 1NO+1NC
